Documentation¶
Compute Module Overview¶
| LattePanda Mu |
|---|
 |
| Model |
| DFR1146: N100 CPU, 8GB RAM, 64GB eMMC DFR1146-ENT: N100 CPU, 8GB RAM, 64GB eMMC, Win11 Enterprise License DFR1147: N100 CPU, 16GB RAM, 64GB eMMC DFR1149: N305 CPU, 16GB RAM, 64GB eMMC |

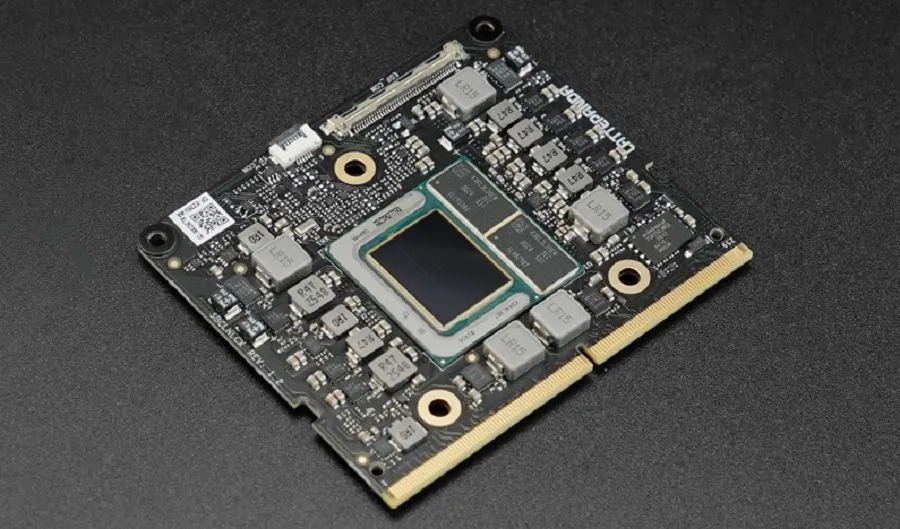

| LattePanda Mu Ultra |
|---|
 |
| Model |
| DFR1294: Intel Core Ultra 5 226V Processor, 16GB RAM DFR1295: Intel Core Ultra 7 256V Processor, 16GB RAM |
Carrier Board Design¶
Designing your own carrier board for LattePanda Mu? Check out the Carrier Board Design Guide for LattePanda Mu, which covers the edge connector, power supply, USB, HDMI, PCIe, SATA and more.
We are preparing the carrier board design guide for the LattePanda Mu Ultra, please stay tuned.
Ready-to-Use Carrier Boards¶
If you prefer an out-of-the-box solution, see the Carrier Board Section for the compatibility list of official carrier boards such as the Mini Carrier, Lite Carrier, Full Eval Carrier, MXM GPU Carrier.
