Multiple Network¶
Ethernet¶
LattePanda Sigma 2 features dual 10Gb Ethernet RJ45 ports (RTL8127), providing high-throughput, low-latency wired connections for servers, NAS, and data-intensive AI workloads. It also supports Wake-On-LAN (WOL) for remote device management.
Compatible Speed¶
Supports 10/100/1000/2500/5000/10000Mbps Ethernet speeds.

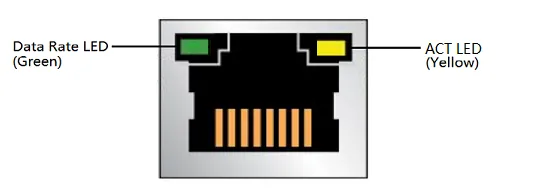

LED Function¶
| LED | LED Color | LED State | Meaning |
|---|---|---|---|
| ACT LED | Yellow | Blinking | LAN activity is occurring. |
| Data Rate LED | Green | OFF | No LAN Link. |
| Green | 10/100/1000/2500/5000/10000 Mb/s data rate is established. |
WiFi¶
Insert a wireless network module into the M.2 E-Key slot (PCIe 4.0 x1, USB 2.0, CNVio3, Type 2230) on LattePanda Sigma 2, and install the antennas.
Then install the driver. Now you can go online!
Compatible Modules¶
The M.2 E-Key slot supports M.2 Type 2230 PCIe and CNVio3 wireless network modules. The following are some compatible modules that we have tested:
- Intel AX210
- Intel AX211
- Intel BE200
