Tech Specs¶

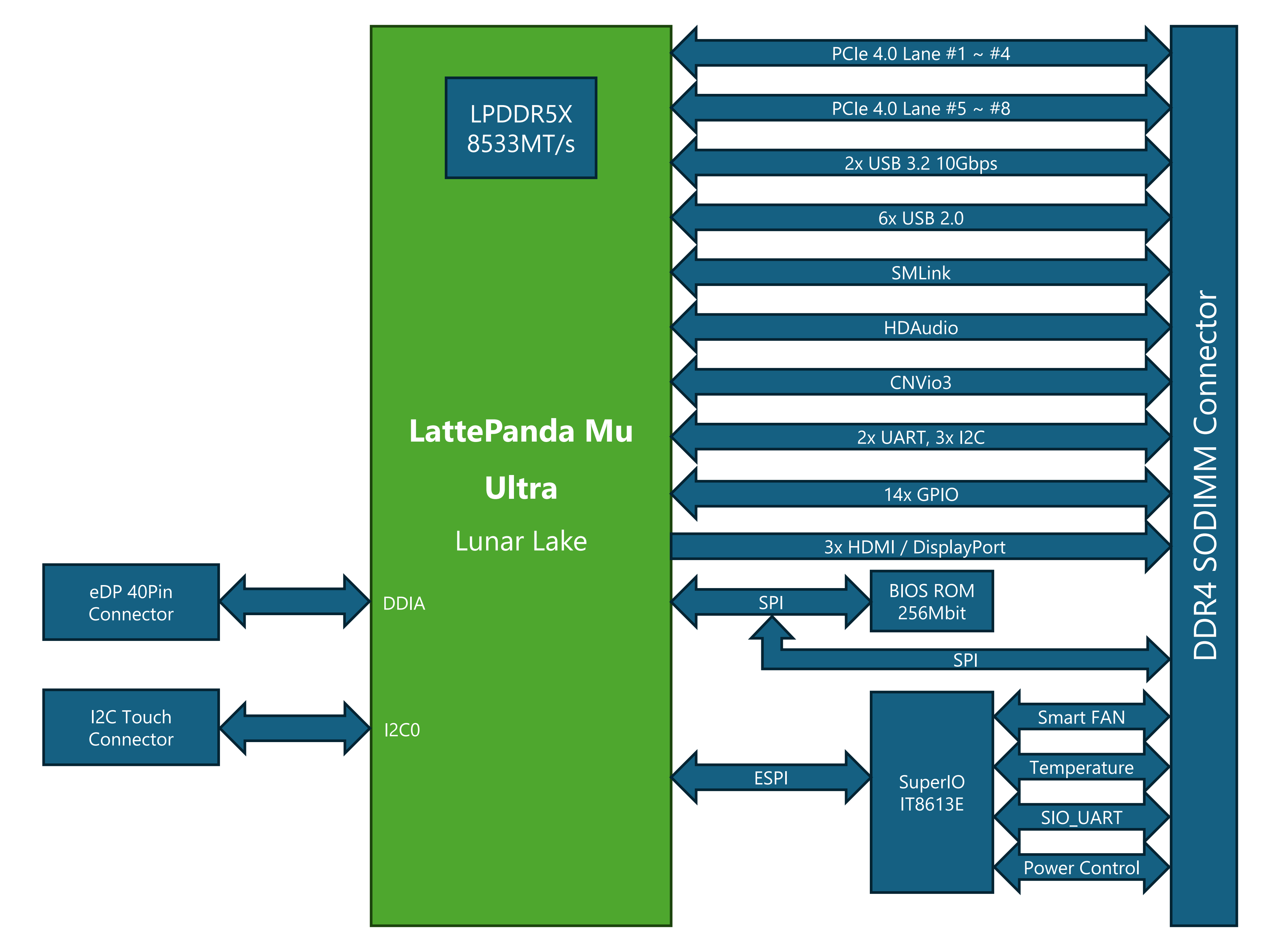

Block Diagram¶
Specifications¶
| Product | LattePanda Mu Ultra 226V | LattePanda Mu Ultra 256V |
|---|---|---|
| SKU | DFR1294 | DFR1295 |
| Processor | Intel® Core™ Ultra 5 Processor 226V | Intel® Core™ Ultra 7 Processor 256V |
| CPU | 8 Cores, 8 Threads Up to 4.5 GHz | 8 Cores, 8 Threads Up to 4.8 GHz |
| Memory | 16GB LPDDR5X 8533 MT/s | 16GB LPDDR5X 8533 MT/s |
| GPU | Intel® Arc™ 130V GPU 7 Xe-cores, Up to 1.85 GHz up to 53 TOPS (Int8) | Intel® Arc™ 140V GPU 8 Xe-cores, Up to 1.95 GHz up to 64 TOPS (Int8) |
| NPU | Intel® AI Boost up to 40 TOPS (Int8) | Intel® AI Boost up to 47 TOPS (Int8) |
| Overall Peak TOPS (Int8) | 97 | 115 |
| Operating System | Windows 11, Ubuntu 24.04 or later | Windows 11, Ubuntu 24.04 or later |
| BIOS | AMI UEFI 256Mbit SPI BIOS | AMI UEFI 256Mbit SPI BIOS |
| Expansion | • Up to 4 PCIe 4.0 x1 • Up to 4 PCIe 4.0 x2 • Up to 2 PCIe 4.0 x4 • 2x USB 3.2 Gen2 • 6x USB 2.0 • 3x UART • 3x I2C • 14x GPIO • 1x CNVio3 | • Up to 4 PCIe 4.0 x1 • Up to 4 PCIe 4.0 x2 • Up to 2 PCIe 4.0 x4 • 2x USB 3.2 Gen2 • 6x USB 2.0 • 3x UART • 3x I2C • 14x GPIO • 1x CNVio3 |
| Display | • 3x HDMI or DisplayPort • 1x eDP • Supports up to 3 independent displays simultaneously. | • 3x HDMI or DisplayPort • 1x eDP • Supports up to 3 independent displays simultaneously. |
| Power Supply | DC 9-20V | DC 9-20V |
| Environment | Operating Temperature: 0~60°C Relative Humidity: 0%~80%RH | Operating Temperature: 0~60°C Relative Humidity: 0%~80%RH |
| Dimension | 60mm * 69.6mm | 60mm * 69.6mm |
